Photovoltaic Architecture of the Orion Spacecraft

Powering Artemis II: Advanced GaAs Solar and Battery Systems for Deep Space Operations

The Artemis II Orion spacecraft embodies a synthesis of high-performance photovoltaic engineering and mission-critical power management, representing the most advanced solar-electric power generation system ever flown for human spaceflight beyond low Earth orbit.

Solar Array Configuration

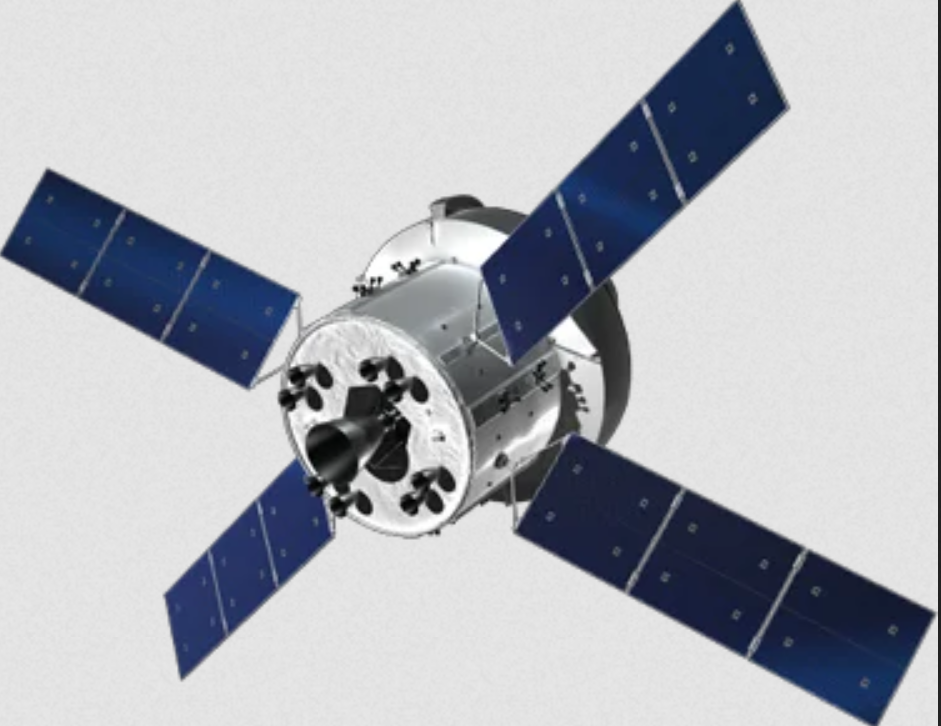

The Orion spacecraft's four-wing solar array system, integrated onto the European Service Module (ESM) and built by Airbus Defence and Space under ESA leadership, generates approximately 11.2 kilowatts (kW) of electrical power. Each wing measures roughly 7 meters (23 feet) in length and consists of three hinged panels. When fully deployed, Orion achieves a total wingspan of 19 meters (63 feet). These arrays can rotate on two independent axes via the Solar Array Drive Mechanism (SADM), ensuring continuous Sun-tracking for optimal energy yield even during spacecraft attitude changes.

Collectively, the arrays contain about 15,000 photovoltaic cells-approximately 3,750 per wing-mounted onto lightweight, carbon-fiber-reinforced composite panels for dimensional stability across a wide thermal range.

Cell Technology and Efficiency

Each panel employs triple-junction InGaP/GaAs/Ge (Indium Gallium Phosphide / Gallium Arsenide / Germanium) solar cells operating in the 30% Beginning-of-Life (BOL) efficiency class. These space-rated photovoltaic devices, originally designed by Emcore (now part of SolAero Technologies under Rocket Lab) and further developed by AZUR SPACE Solar Power GmbH, utilize III-V semiconductor heterostructures grown on monolithic germanium substrates for superior spectral response and high radiation tolerance.

According to ESA documentation and AZUR SPACE data sheets, the company's 3G30-Advanced cell line, used in Orion's solar wings, provides end-of-life performance stability exceeding prior-generation GaAs triple-junctions at 30% BOL efficiency esa.int azurspace.com.

These cells are individually coverglassed with a 100 µm microsheet of fused silica adhered using space-grade adhesive, forming integral protection against micrometeoroid abrasion and harsh solar UV exposure.

System Integration and Performance

Each solar wing attaches via 16 hold-down release mechanisms that secure the panels through the forces of ascent and deploy automatically once in orbit. The panels unfold through a pyrotechnically triggered cable-release heating system tested during a prelaunch "glow test" sequence blogs.esa.int.

During Artemis I, the previous uncrewed mission, the ESM's solar arrays outperformed modeling predictions by nearly 15% additional power generation, demonstrating robust real-world energy conversion under deep-space illumination. The Artemis II ESM-2 configuration incorporates these performance optimizations and redundancy in power distribution, sufficient to sustain crew life-support, computation, thermal regulation, and communications systems over multi-week lunar trajectories.

Power Storage and Conditioning Primary Energy Storage

In addition to solar power, Orion employs four lithium-ion (Li-ion) batteries developed by EaglePicher Technologies. Each battery contains 32 prismatic cells arranged into a 120-volt direct current (DC) bus architecture, supporting a dynamic operating range between ~98–136 V as charge levels fluctuate.

This battery-on-bus design differs from conventional regulated-bus satellite systems, reflecting a deliberate trade between mass efficiency and system simplicity. The batteries are capable of sustaining command, navigation, and life-support loads through anticipated eclipse durations when solar input drops to zero.

Eagle Picher, renowned for its flight-proven heritage on Apollo and ISS systems, tailored Orion's Li-ion chemistry for deep-cycle endurance in vacuum and thermal extremes, integrating redundant thermal sensors and active heaters.

Automatic Eclipse Management

When sunlight is occluded by Earth or the Moon, the spacecraft's Power Conditioning and Distribution Unit (PCDU) automatically reroutes current draw from the charged onboard batteries, ensuring uninterrupted electrical continuity to essential subsystems. The autonomous switchover sequence is software-governed and protected by hardware interlocks designed by ESI Motion, the system's contractor for power regulation electronics.

Auxiliary Power Systems: Launch Abort and Safety

The Launch Abort System (LAS), a jettisonable safety tower used to propel the crew module away from the launch vehicle in an emergency, includes a dual redundant battery bank rated at 120 volts each. These independent power sources sustain the abort flight computers, telemetry instrumentation, and ignition control systems during standalone operation.

During prelaunch rehearsals in April 2026, NASA engineers temporarily halted the Artemis II countdown to investigate a temperature anomaly in one LAS battery monitoring sensor-it was later confirmed to be an instrumentation error rather than a true thermal excursion.

Crew Power Interface and Monitoring

Control of Orion's power systems is mediated through its glass cockpit configuration, integrating three multifunction display units (DUs) powered by Honeywell avionics and the IData software suite.

• DU1 (Left) – Command module diagnostics
• DU2 (Center) – Shared systems display, including solar array telemetry and battery SOC (state-of-charge) visualization
• DU3 (Right) – Pilot controls and external communications

Astronauts interact with these systems via a Cursor Control Device (CCD)-a precision "twizzle-knob" enabling fine control even under acceleration-and are supported by electronic procedures (eProc) that automatically cue fault-resolution steps on-screen.

This modern systems architecture replaces nearly 2,000 switches from Apollo-era designs with just ~63 tactile inputs, streamlining power management through redundancy, automation, and intuitive visualization.

Engineering Integration and Operational Insights

The integration of AZUR SPACE's high-efficiency GaAs cells, Airbus's modular ESM design, and EaglePicher's heritage battery systems deliver a power architecture that is both radiation-hardened and thermally robust. Energy availability margins observed during Artemis I validate the engineering rationale for relying exclusively on solar-electric propulsion and life-support in lunar operations.

For Artemis II, this capability not only supports human-rated reliability standards across a 400,000 km mission radius but also acts as a scalable reference design for future Mars transit configurations, where photovoltaic arrays and energy storage must operate continuously in variable irradiance and radiation environments.

In total, Orion's hybridized system architecture exemplifies the current plateau of space-qualified photovoltaic and electrochemical energy technology-each subsystem optimized for efficiency, redundancy, and resilience amid the unforgiving conditions of cis-lunar space.

Solar Power Generation and Energy Budget Analysis for the Artemis II Orion Spacecraft

The solar array system aboard NASA's Artemis II Orion spacecraft represents a significant advancement in space-qualified photovoltaic engineering-optimized for sustained power delivery through both deep-space cruise and crewed mission phases. While its rated capacity is 11.2 kW at Beginning-of-Life (BOL), real power output varies dynamically depending on array orientation, incident solar flux, and thermal environment.

Nominal Power Production and Efficiency Profile

Each of the four solar array wings, built by Airbus Defence and Space under the European Space Agency (ESA), carries about 3,750 triple-junction InGaP/GaAs/Ge cells, for a total of 15,000 devices. Operating efficiencies are 30% BOL, with modeled End-of-Life (EOL) values around 26–27% after expected radiation exposure during the lunar mission phase.

Under full, direct solar illumination at 1 AU, the photovoltaic system produces ≈ 11.2 kW gross DC output, which is distributed across Orion's  20 V unregulated bus.

NASA's System Power Analysis for Capability Evaluation (SPACE) model-developed at Glenn Research Center-shows the system sustaining generation levels between 10.0 and 11.5 kW under typical operational attitudes and orientations ntrs.nasa.gov.

Power Generation Over Mission Duration Deep-Space Operating Environment

Orion's power yield is governed mainly by solar flux variations and array pointing. At 1 AU solar distance (Earth–Moon range), the modeled insolation is roughly 1,361 W/m²; degradation from temperature rise (typically +80 °C during direct Sun exposure) and minor cosine losses reduces net array efficiency to about 28% on average.

Using flight data correlations from Artemis I and extrapolations validated by NASA Glenn's SPACE model, daily electrical energy generation can be approximated as:

These numbers exclude short-term attitude-based losses (e.g., communication antenna alignment or solar tracking during maneuvering), which can subtract an additional 3–5 %.

3. Battery-Coupled Energy Availability

During eclipse intervals-when Orion passes into Earth or lunar shadow-the four 120 V lithium-ion batteries automatically sustain critical loads. Battery energy storage totals roughly 25–30 kWh, enough to maintain full functionality for 1–2 hours of darkness per orbit segment. The Power Conditioning and Distribution Unit (PCDU) continuously balances solar generation and load demand: excess solar power during daylight directly recharges the batteries, providing a near-seamless transition between sunlight and eclipse operation.

4. Comparative Context with Other Space Solar Systems

By comparison, Orion's generation-to-mass efficiency is exceptional for a human-rated system-roughly 2 kW/kilogram of array payload-made possible by high-voltage operation and GaAs-based triple-junction cells with verified radiation tolerance, enabling stable power over multi-week lunar missions.

5. Long-Term Performance Modeling

According to NASA Glenn's "Solar Array Performance Modeling for NASA's Artemis Missions" report ntrs.nasa.gov, Orion's array degradation under simulated conditions for the Artemis I profile was ≤ 2.5% after the equivalent of > 2 years BOL exposure at 1 AU. Incorporating temperature coefficients (–0.065%/°C) and cumulative radiation displacement damage, the expected power margin by end-of-mission is still above 10.6 kW.

In mission practice, Artemis I arrays exceeded preflight predictions by ~15%, validating SPACE's refined degradation modeling and showing robust overcapacity for Artemis II's four-astronaut flight.

6. Summary

In continuous operation, Orion's solar array system produces 180 kWh of electrical energy per day, balancing real-time demand (~8 kW) with strong battery redundancy for eclipses. The system's combined generation–storage–distribution design is a direct outcome of years of modeling refinement by NASA Glenn's Power and Propulsion Division.

Total energy produced over a full Artemis II mission exceeds 1.5 MWh, making it one of the most capable human-rated solar systems ever flown-bridging heritage spacecraft design with the long-duration photovoltaic reliability demanded for lunar and eventual Mars transits.

References:
esa.int - ESA: Solar arrays installed on NASA's Artemis II Orion spacecraft
blogs.esa.int - ESA Orion Blog: Artemis II Solar Wings
azurspace.com - AZUR SPACE Solar Power GmbH Product Specifications: 3G30-Advanced Triple-Junction Cells

For detailed mission performance modeling and SPACE code validation results, see NASA Technical Reports Server (NTRS) and ESA Multimedia.

------------------------------
Timothy Mcbride
CEOOwner
Sol-Era R & D
------------------------------

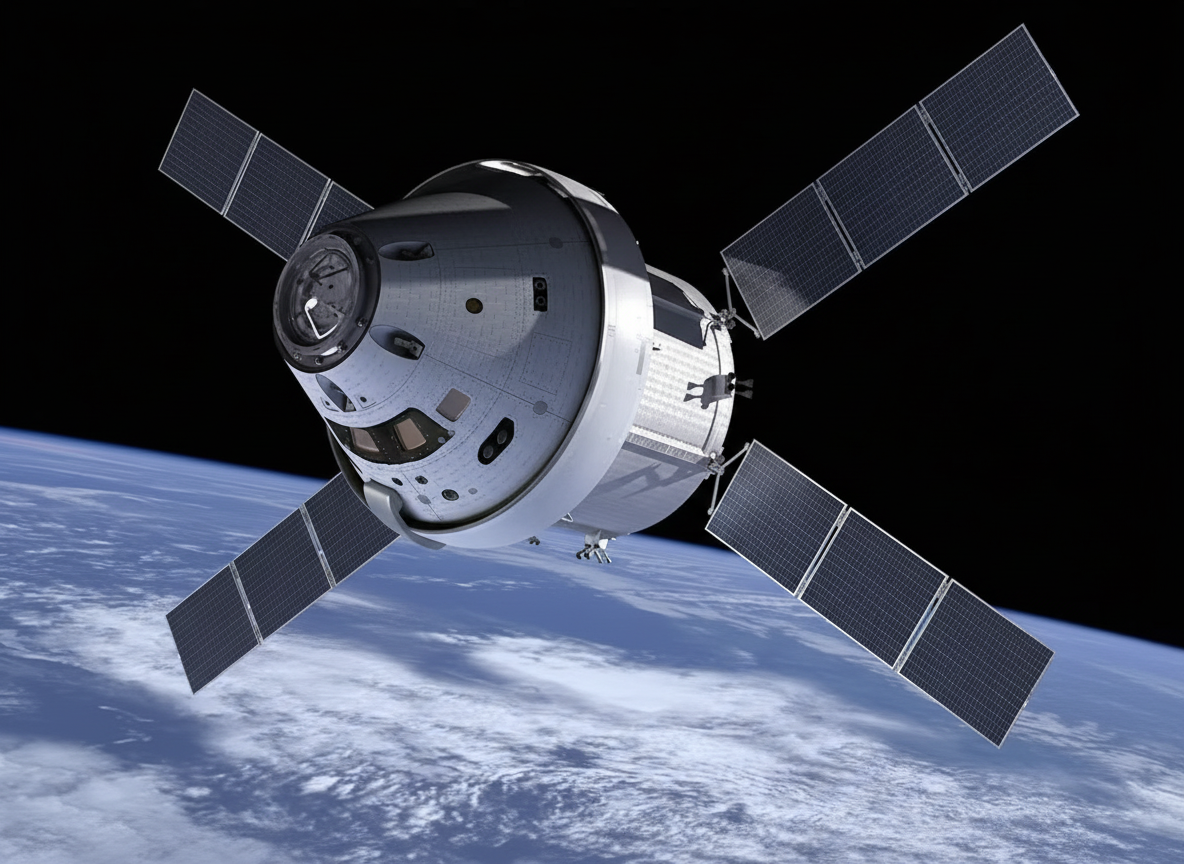

There are actually 3 panel sections per wing, picture only shows 2, totaling 12 panels per wing, 48 total.

Did you watch the launch live... weather perfect. To be blunt, I thought the commentary and the vid shots could have been allot better, given the tech available today VS '69. The solids detached and remained in the picture for a long time. No-one said Boo about them, etc..

Great to see the mission off and running....

------------------------------
william fitch
Owner
www.WeAreSolar.com
